MEDITATIVE SYMBIOSIS
COMPONENTS
The installation is composed of a container with a plant and an electronic system with sensors and circuitry connected to a computer. In the installation every single component is part of the concept.
Container

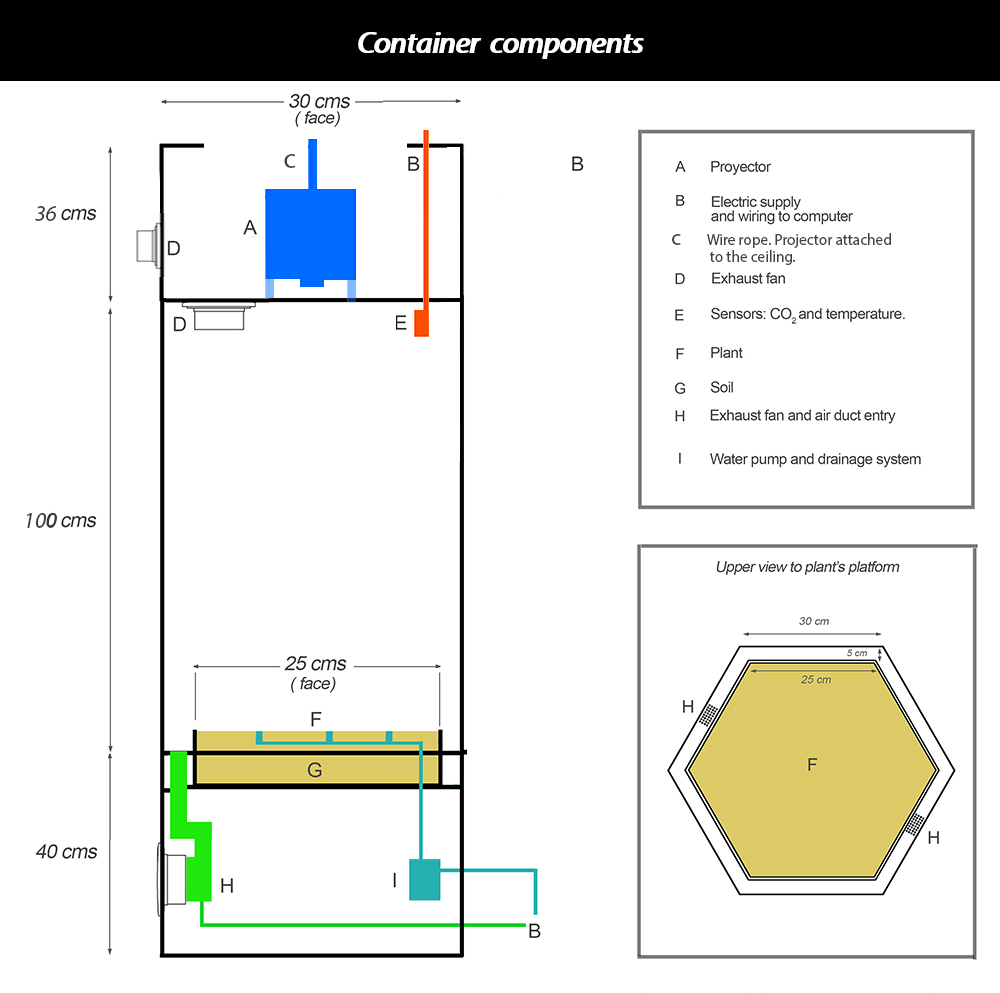

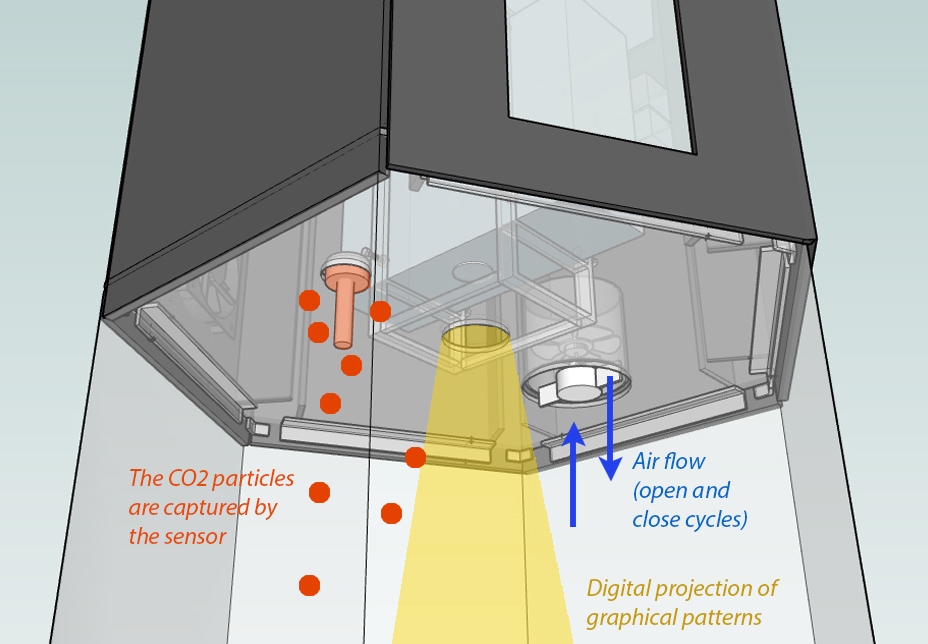

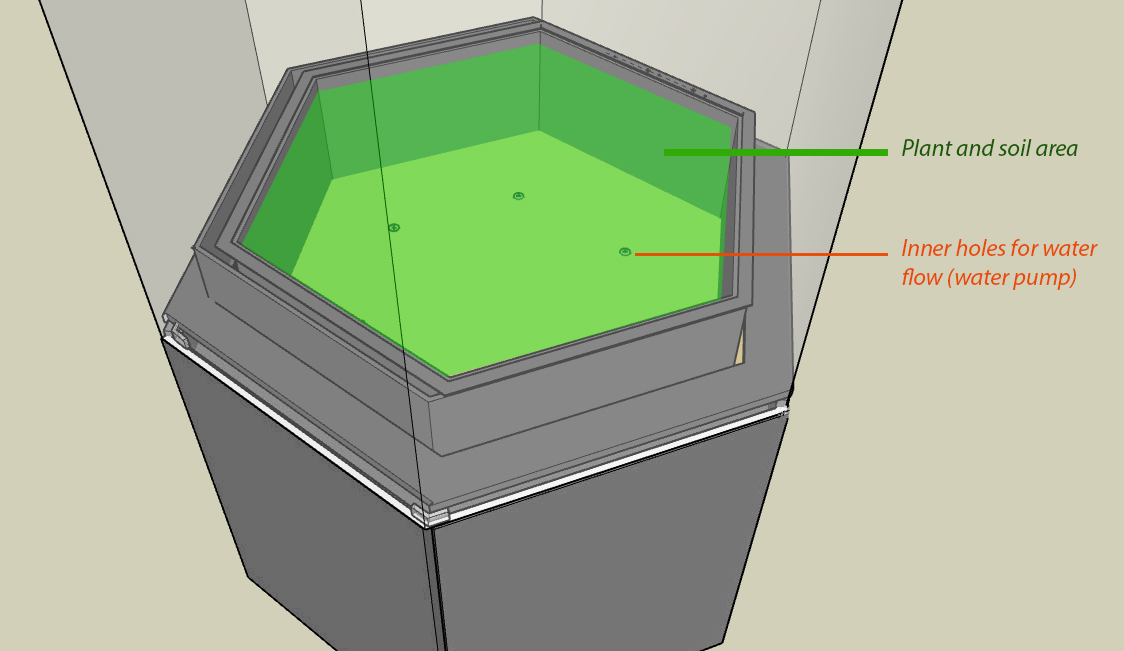

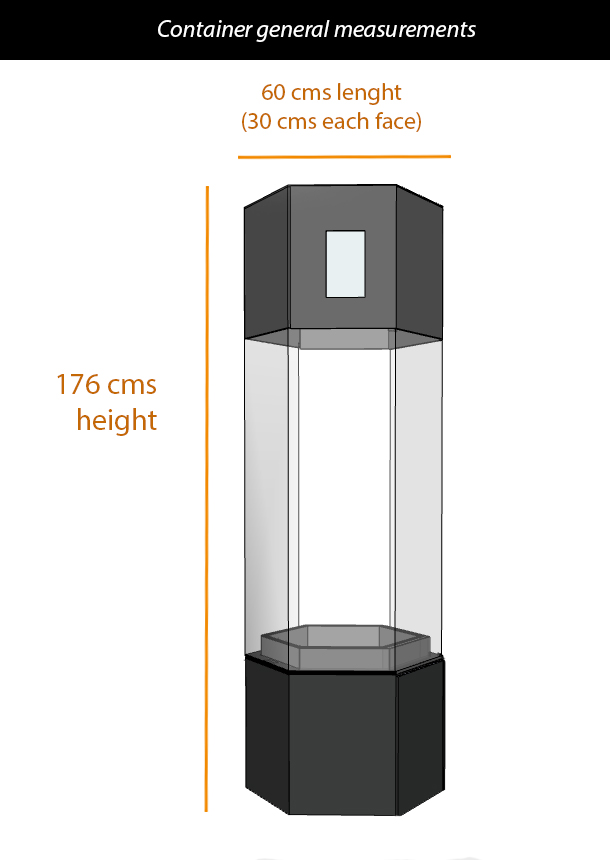

The container is composed of acrylic glass (black and transparent), 3mm and 4mm thick. The air flows inside the container by 2 fans (in the scheme, points D and H) and automatic doors. At the top, outside the container, a proyector is located (A). The plant is feeding with water in the container's base, throught a water pump (I). Inside the container, CO2 and temperature sensors are located (E). In the center of the plant's platform, a photosynthetic radiation sensor (F).

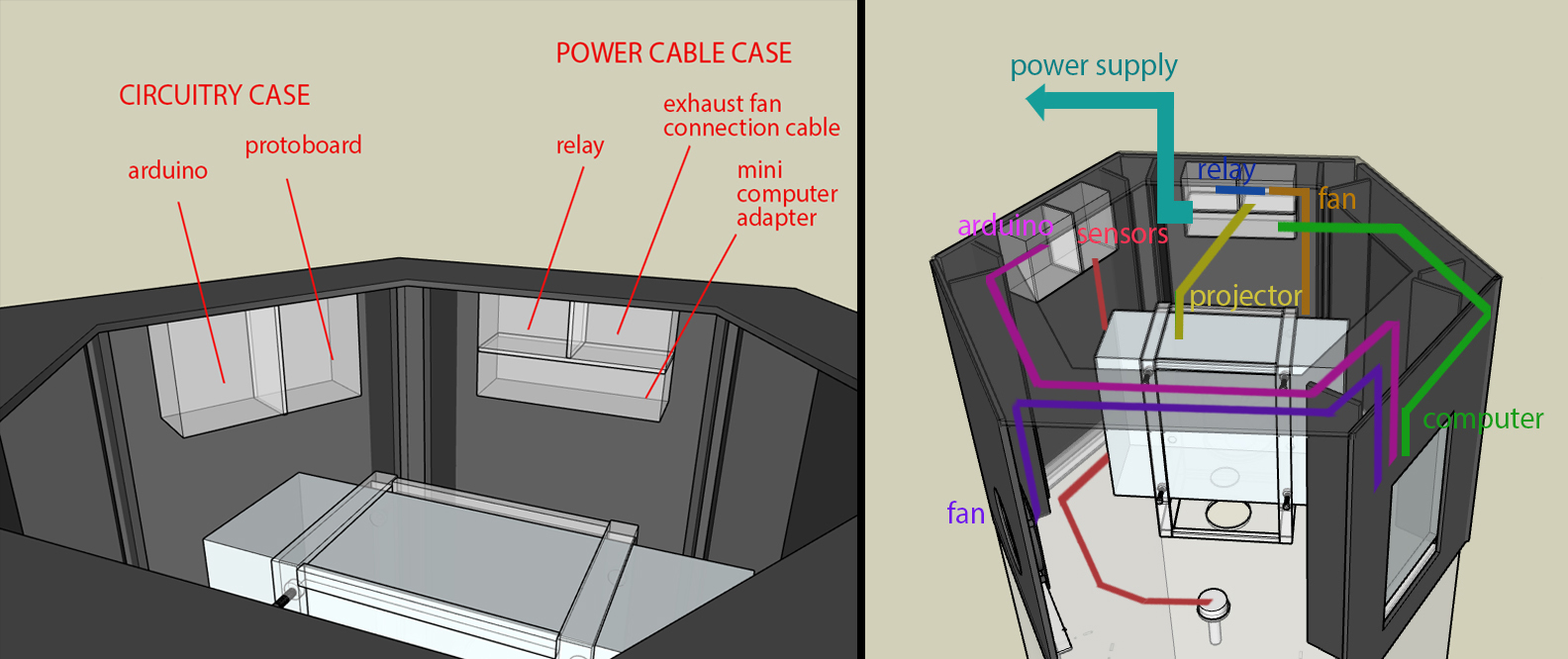

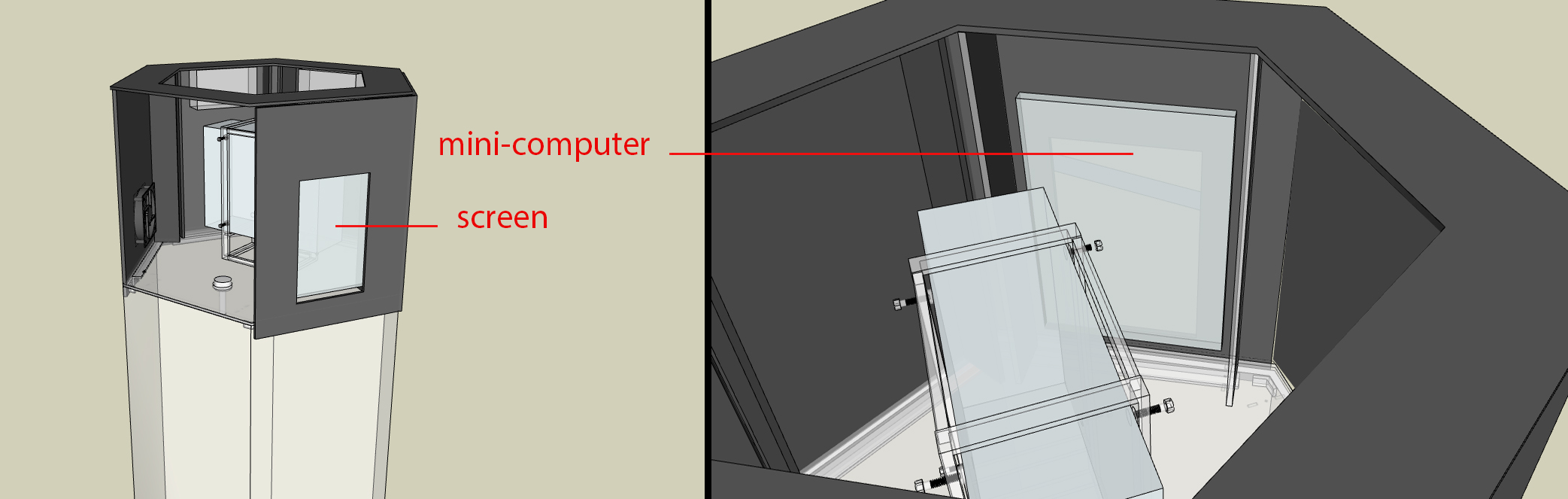

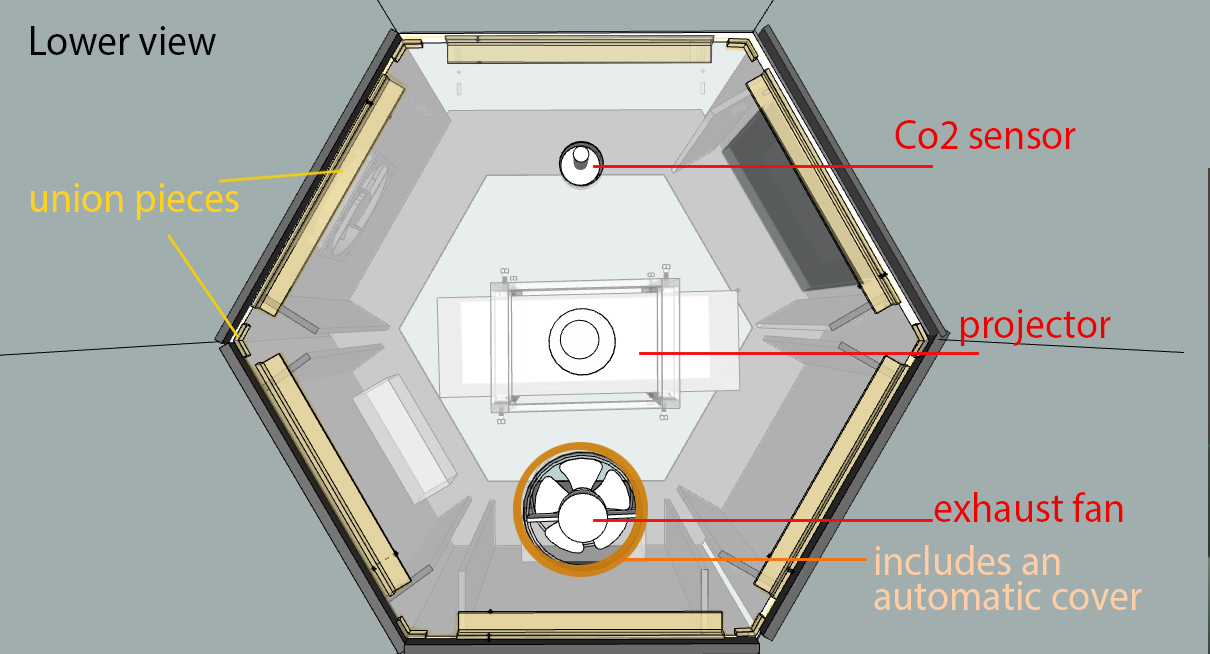

The following images show components details and their connections for the system correct function:
